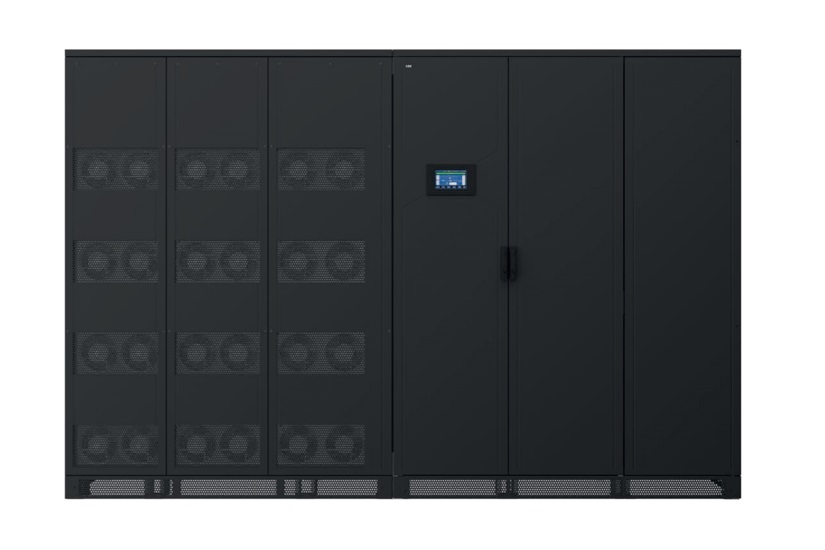

MegaFlex DPA

Three-phase modular UPS from 1000kW  6000kW

Sửa bởiLiên hệ
Liên hệ
Giá chưa thuế: Liên hệ
Liên hệ


Liên hệ

Họ tên(*)
Trường bắt buộc

Công ty(*)
Trường bắt buộc

Địa chỉ
Invalid Input

Điện thoại
Invalid Input

Email(*)
Trường bắt buộc

Nội dung(*)
Trường bắt buộc

Gửi ngay


Đánh giá: Chưa có đánh giá

Nhận xét

Sản phẩm này chưa có đánh giá.

MegaFlex DPATM is designed for critical high-density computing environments across private and public enterprise, as well as data centers for colocation, hosting cloud and telecommunications.

The modular UPS is based on ABB’s decentralized parallel architecture (DPA™). This innovative system means every UPS module is practically its own UPS with all the essential functional units needed for independent operation.

The on-line double conversion UPS provides the best power protection for your critical infrastructure from 250 kW to 1,500 kW.

General data

UPS frame rated power

1000 kW / 1500 kW

UPS module rated power

250 kW

UPS output rated PF

1.0

Max no of parallel frames

Up to 4 frames

Max no of parallel modules across frames

Up to 24 modules

Max system power

6000 kW

Wiring

3ph + N + PE (4W), 3ph + PE (3W)

UPS type

Modular (DPA)

Topology

Online double conversion

Input

Nominal input voltage

220/380, 230/400, 240/415 VAC

Voltage range

30% at partial loads

Frequency range

35 – 70 Hz

Current THD at 100% load

<4%

Power Factor at 100% load

0.99

Output

Rated output voltage (load dependent)

220/380, 230/400, 240/415 VAC

Voltage THD (with linear load)

± 1%

Rated frequency

50 or 60 Hz (selectable)

Efficiency

Double conversion

Up to 97.4% (50% rated load);
> 97% (25 % rated load)

Eco-mode

Up to 99%

Communications

User interface

Module level LCD + mimic diagram, system graphical display

Communication ports

USB, RS-232, programmable potential-free contacts, ABB network card

Software

Monitoring and shutdown software available as option
