Static frequency converter for 50/60 Hz conversion, 125 kVA to 10 MVA. Clean sinewave output with unity power factor input for shore-to-ship, FPSO, and industrial frequency conversion.

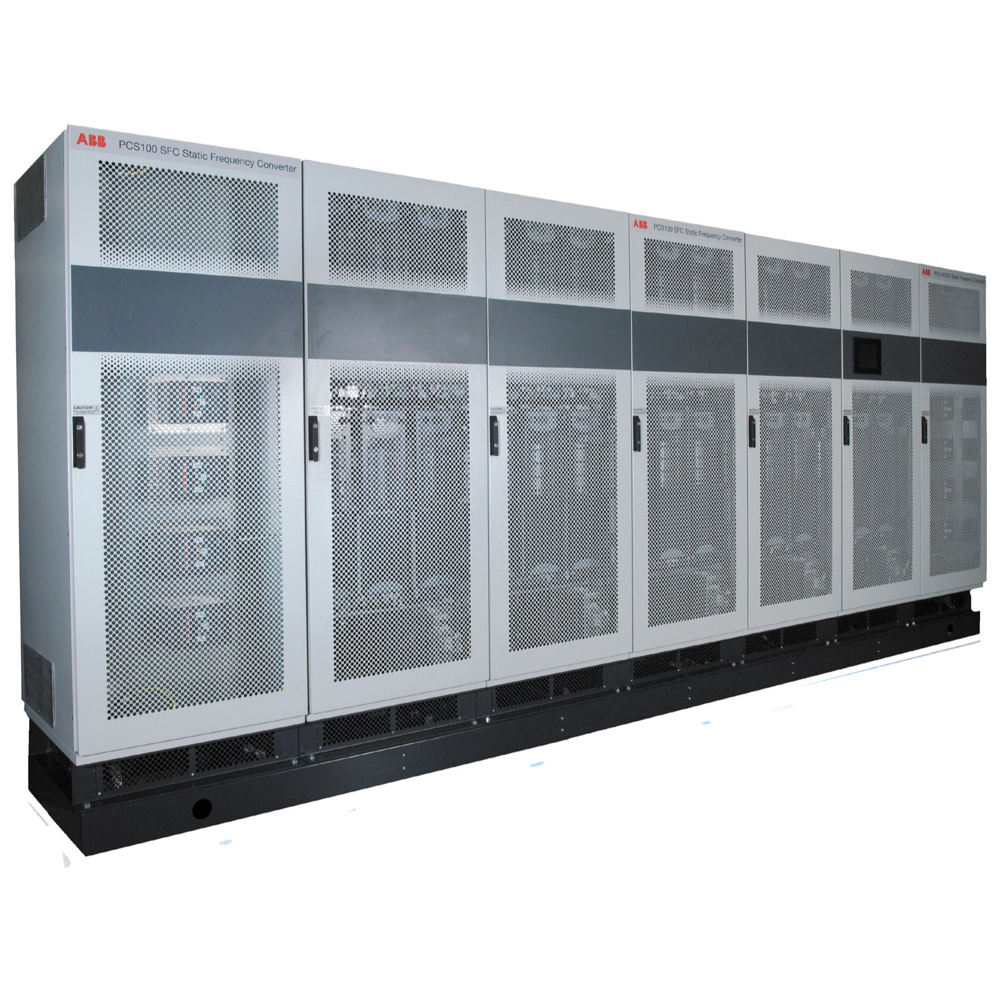

The ABB PCS100 SFC is a static frequency converter that provides reliable, precise 50 Hz or 60 Hz power conversion for industrial, marine, aviation, and defense applications. Based on robust power electronics, it converts between grid frequencies without the mass and maintenance of rotating machinery.
Typical uses include shore-to-ship power, aircraft ground power, factory acceptance testing, and equipment export scenarios where mains frequency does not match the load specification.
Delivers clean, regulated output at the required frequency and voltage, supporting 50 Hz and 60 Hz loads regardless of the upstream grid.
Static conversion removes the wear, noise, and maintenance of rotating sets while delivering higher efficiency and a smaller footprint.
Purpose-built configurations support shore power and aircraft ground power applications, meeting the relevant ship- and airport-side standards.
Low output harmonics and tight voltage regulation protect expensive onboard systems, test benches, and delicate aerospace equipment.
| General Data | |
|---|---|
| Power Range | 125 kVA to 10 MVA |
| Topology | Static Frequency Converter |
| Frequency | 50 Hz and 60 Hz input/output |
| Redundancy | N+1 modular redundancy |
| Input | |
| Voltage | Wide range of voltages available |
| Power Factor | Unity power factor, sinewave, active rectifier |
| Output Waveform | Clean sinewave output |
| Features | |
| Paralleling | Easy paralleling using frequency and voltage droop |
| Isolation | Fully isolated AC via output transformer |
| Display | Touch screen colour graphic display (GDM) |
| Communication | Internal web server and Modbus TCP |
| Environmental | |
| Operating Temperature | 0 to 40 deg C |
| Applications | Shore-to-ship, FPSO, plant relocation, onboard vessels |
