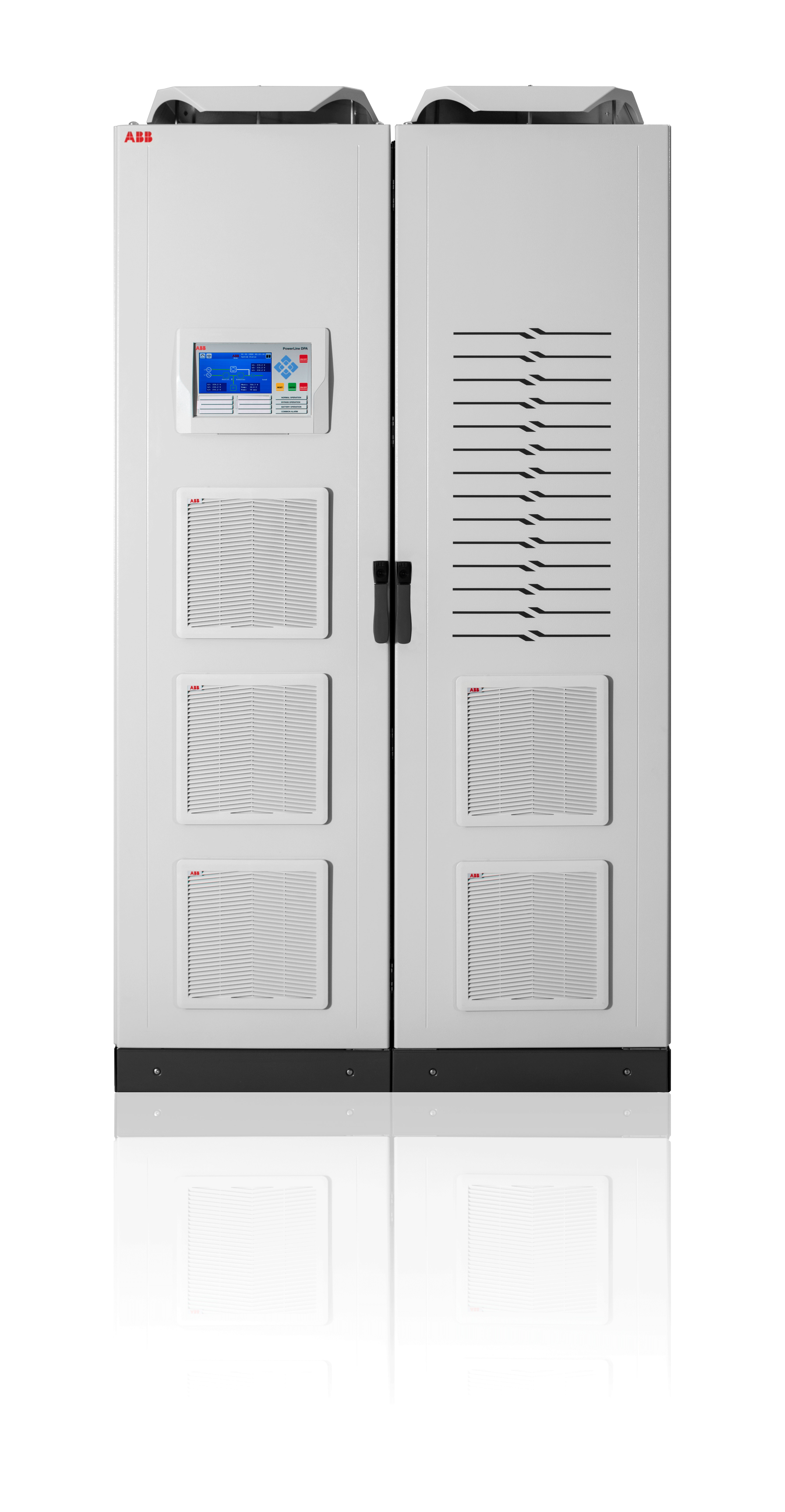

Industrial modular UPS with Decentralized Parallel Architecture, 20-120 kVA three-phase. IP31 rated, -5 to +45°C, 96% efficiency, unity power factor, 15-year design life.
The ABB Powerline DPA is a rugged modular UPS optimized for industrial environments. It combines the concurrent maintainability of a decentralized parallel architecture with the robust packaging, wide operating conditions, and long service life required by process industries.
Typical applications include oil and gas, water treatment, utilities, transportation, and heavy manufacturing where long operating life, low maintenance, and high availability are non-negotiable.
Combines decentralized modular architecture with industrial packaging — high ingress protection, wide temperature range, and robust components — for demanding plant installations.
Modules can be swapped under load, eliminating the need to transfer critical process loads to raw utility during routine service.
Engineered for 15+ years of service with readily available spares and ABB’s global service footprint, protecting long-horizon industrial investments.
Robust short-circuit performance ensures correct coordination with downstream protective devices, preserving availability of unaffected loads during faults.
| General Data | |
|---|---|
| Power Range | 20 - 120 kVA (3-phase) / 20 - 80 kVA (1-phase) |
| Topology | Online double conversion, DPA modular |
| Design Life | 15 years |
| Input Power Factor | 0.99 |
| Output | |
| Efficiency (3-phase) | Up to 96% |
| Efficiency (1-phase) | Up to 94% |
| Input THDi | < 4% |
| Output THDv | < 2% |
| Unbalanced Load | 100% capability |
| Mechanical | |
| Protection Rating | IP31 (IP42 optional) |
| MTTR | < 30 minutes |
| Cabling | Halogen-free cables |
| Environmental | |
| Operating Temperature | -5 to +45 deg C |
| Humidity | Up to 95% |
| Standards | |
| Safety | IEC/EN 62040-1 |
| EMC | IEC/EN 62040-2 |
| Performance | IEC/EN 62040-3 |
| Railway | EN 50121 |
