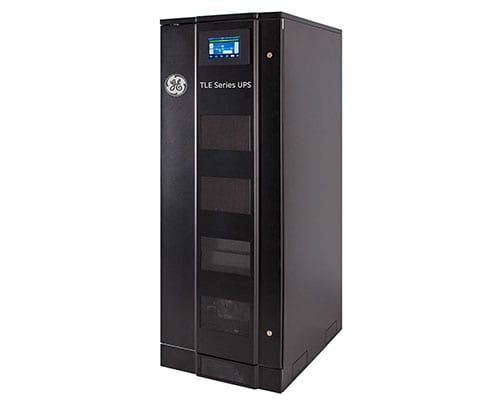

TLE Series UPS 40-120kW

Lượt xem : 2040

TLE Series 40-120 Scalable CE UPS is one of the best performing three-phase UPS systems providing critical power protection for a wide range of applications. The TLEScalable series operates in VFI mode (Voltage Frequency Independent) and has been developed to satisfy the growing request of high efficiency through an innovative control algorithm using 3-level inverter technology.

The TLE Scalable series UPS provides industry-leading reliability, efficiency, clean input performance and unity power factor at the output with the ability to scale from 40kW to 120kW vertically. Reliability & power can be further increased by paralleling more units utilizing GE’s unique RPA™ (Redundant Parallel Architecture) technology.

Liên hệ

Features and Benefits

  ·      Scalable using 40kW Power Block to 120kW

  ·      Capable of 6 units in RPA to 720kW

  ·      Ventilation Front to Top

  ·      Built in static & maintenance bypass

  ·      Can be positioned against rear and side walls

  ·      Easy termination point at the front bottom

  ·      Long Design life of 12 years plus

  ·      Common Battery up to 3 units

  ·      External Transformer Enclosures

  ·      Frequency Converter / Conditioner Mode (no batteries)

  ·      Backfeed Protection

  ·      Blackbox – Intelligent Diagnostics



Specifications

  ·     40 to 120 kVA

  ·     Nominal Voltage Output 3x380/400/415V + N

  ·     Matching External Battery Cabinets

  ·      Super Eco Mode Operation Mode

  ·      Overall efficiency in VFI mode:  >95%, Overall efficiency in ECO mode: 99%

  ·      RPA kit (Redundant Parallel Architecture)

  ·      Front connection with limited internal battery runtime.

  ·      Rectifier or bypass or UPS input transformer
