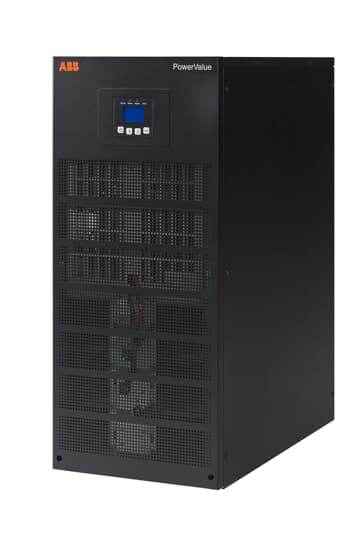

PowerValue 11/31 T - ABB
An efficient uninterruptible power supply with scalable runtime
- Product information
ABB’s new compact PowerValue 11/31 T UPS from 10 kVA to 80 kVA, incorporates all the necessary features to deliver reliable power, low running costs, long battery life, easy maintenance and full flexibility for the user.
|
General data |
|
|
System power range |
10 kVA – 80 kVA |
|
UPS frame rated power |
10 / 20 kVA |
|
UPS output rated PF |
0.9 |
|
Max. no of parallel frames |
Up to 4 units |
|
Wiring |
1ph or 3ph + N + PE (selectable) |
|
UPS type |
Standalone tower |
|
Topology |
True online double conversion |
|
Input |
|
|
Nominal input voltage |
220/380, 230/400, 240/415 VAC |
|
Voltage range |
1-ph 110 - 276 VAC |
|
Frequency range |
45 - 55 Hz for 50 Hz systems 55 - 65 Hz for 60 Hz systems |
|
Current THD at 100% load |
≤5% |
|
Power Factor at 100% load |
≥0.99 |
|
Output |
|
|
Rated output voltage |
220, 230, 240 VAC |
|
Voltage THD (with linear load) |
≤2% |
|
Frequency |
50 or 60 Hz (selectable) |
|
Efficiency |
|
|
Online double conversion |
Up to 93% |
|
Eco-mode |
Up to 97% |
|
Communications |
|
|
User interface |
LCD + LEDs |
|
Communication ports |
USB, RS-232, SNMP slot, potential-free contacts (optional) |
|
Software |
Monitoring and shutdown software available as option |
|
Compliancy |
|
|
Safety |
IEC/EN 62040-1 |
|
EMC |
IEC/EN 62040-2 |
|
Performance |
IEC/EN 62040-3 |
|
Manufacturing |
ISO 9001:2008, ISO 14001:2004 |
|
RoHS |
IEC/EN 50581:2012 |
