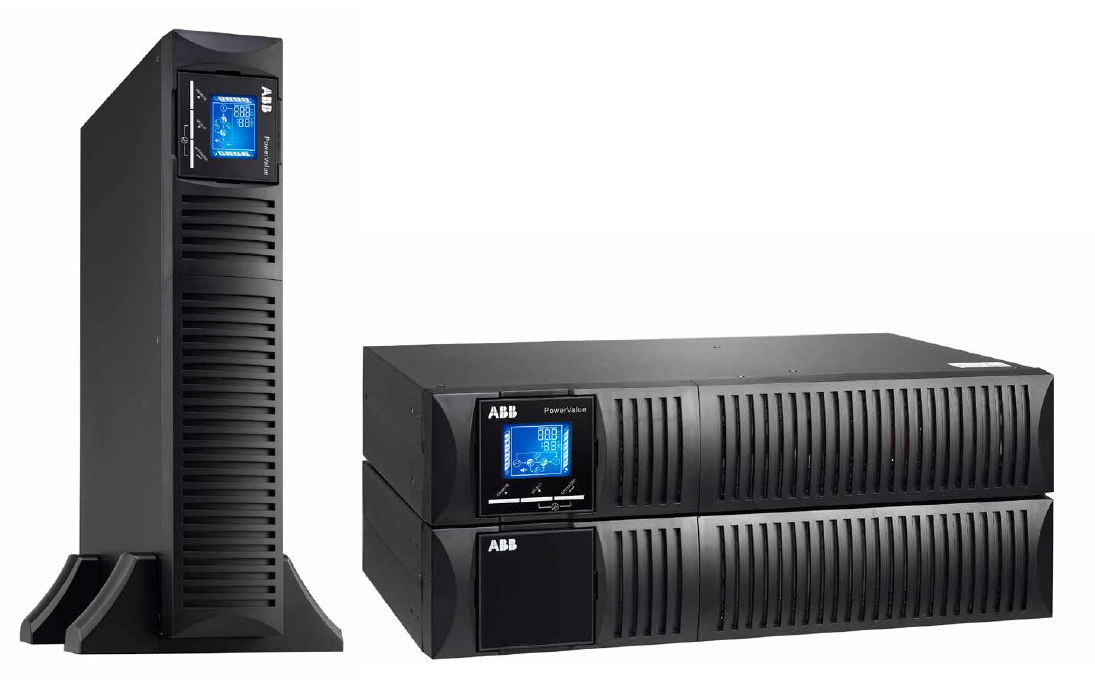

PowerValue 11 RT G2 - ABB
The single-phase UPS for critical applications (1kVA - 10kVA)
- Product information
ABB’s PowerValue 11 RT G2 is a double-conversion online UPS that guarantees up to 10 kVA of clean, reliable power for your critical single-phase applications. As well as maintaining power to your servers, point-of-sale terminals, workstation clusters, routers, switches, hubs and sensitive electronic equipment, the PowerValue 11 RT G2 also conditions incoming power to eliminate spikes, swells, sags, noise and harmonics.
The PowerValue 11 RT G2 can be used as a standalone UPS device or installed into a standard 19"rack configuration, with connectivity options available for each. Three units of the 6 or 10 kVA models can be configured in parallel to provide redundancy or to increase the systems total capacity up to 30 kW. All units can be fitted with up to four battery modules to extend runtime.
|
GENERA DATA |
|
|
UPS frame rated power |
1 / 2 / 3 / 6 / 10 kVA |
|
UPS module rated power |
- |
|
UPS output rated PF |
1.0 |
|
Max no of parallel frames |
Up to 3 units (model dependent) |
|
Max no of parallel modules across frames |
- |
|
Max system power |
30 kW |
|
Wiring |
1-ph + N + PE |
|
UPS type |
Standalone tower |
|
Topology |
Online double conversion |
|
INPUT |
||
|
Nominal input voltage |
220 / 230 / 240 VAC (1 - 3 kVA) |
|
|
Voltage range |
100 - 300 VAC (1 - 3kVA) |
|
|
Frequency range |
45 - 55 Hz / 54 - 66 Hz |
|
|
Current THD at 100% load |
<5% with full resistive load (1 - 3 kVA) |
|
|
Power Factor at 100% load |
≥0.99 (1 - 3 kVA) |
|
|
OUTPUT |
||
|
Rated output voltage (load dependent) |
220 / 230 / 240 VAC (1 - 3 kVA) |
|
|
Voltage THD (with linear load) |
<2% linear load, <5% non linear load (1 - 3 kVA) |
|
|
Rated frequency |
50 or 60 Hz |
|
|
EFFICIENCY |
|
|
Double conversion |
Up to 92% (1 - 2 - 3 kVA) Up to 95% (6 - 10 kVA) |
|
Eco-mode |
Up to 98% |
|
COMMUNICATIONS |
|
|
User interface |
LCD |
|
Communication ports |
SNMP; ModBus; AS400; Environmental monitoring sensor probe |
|
Software |
Monitoring and shutdown software available as option |
