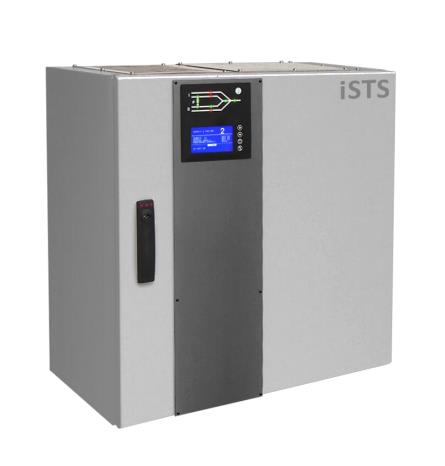

iSTS Model C 63A to 160A

Lượt xem : 1151

Generally dedicated to a single sensitive application where power continuity is critical. iSTS model C rugged design is adapted to all industrial environments.

Compact, wall mounted, iSTS Model C frees floor space.

Liên hệ

Features and Benefits

·        Fuse-less

·        Space saving wall-mount design

·        Built-in transient voltage protection

·        UPS Eco-Mode compatible

·        Safe asynchronous source transfers

·        Very high MTBF (>800,000 hours)

·        LED mimic decal with graphic LCD interface

·        One touch transfers

·        Visual and sound alarm

·        Integrated web server

·        Remote operation

·        High-level interface - MODBUS, SNMP

·        Email alerts

·        Clock synchronisation with NTP

·        Maintenance bypass with mechanically interlocked 5 xcircuit breakers

·        Redundant fan cooling

·        5 x voltage free contacts & remote inputs

·        Easy access for maintenance

·        Australian designed & manufactured

Specifications

·        1-Phase/2-Pole or 3-Phase/3-Pole or 3-Phase/4-Pole – 3Ph models are 4-wire + earth unless otherwise stated

·        Current rating 100A to 250A

·        Voltage rating All region-specific voltages selectable ±10%

·        Safe install environment 20kA for 1 cycle

·        Frequency 50Hz and 60Hz, ±10% - Auto detection

·        Transfer at zero current by break-before-make by Thyristors / SCR

·        Protection Circuit breakers

·        RS232 or RS485 with third party adapter
