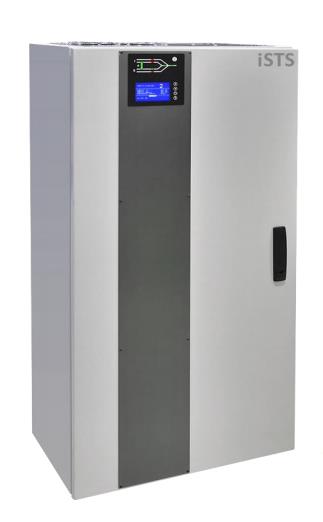

iSTS Model Hw 100A to 250A

Lượt xem : 1101

The Wall-Mount Solution for Decentralised Distribution iSTS Model Hw provides protection against infrastructure failures and upstream inadvertent switching events. It is a rugged fuse-less design capable of reliable operation under the most arduous operating conditions.

Wall mounted and with just 300mm depth, iSTS Model Hw is suited for limited spaces.

Liên hệ

Features and Benefits

·        Fuseless design

·        Wall mount

·        Built-in transient voltage protection

·        UPS Eco-Mode compatible

·        Safe asynchronous source transfers

·        Very high MTBF (>800,000 hours)

·        LED mimic decal with graphic LCD interface

·        One touch transfers

·        Visual and sound alarm

·        Integrated web server

·        Remote operation

·        High-level interface - MODBUS, SNMP

·        Email alerts

·        Clock synchronisation with NTP

·        Mechanically interlocked circuit breakers Maintenance bypass

·        Redundant fan cooling

·        High fault current capacity

·        5 x voltage free contacts & remote inputs

·        Easy access for maintenance

·        Australian designed & manufactured

Specifications

·        1-Phase/2-Pole or 3-Phase/3-Pole or 3-Phase/4-Pole – 3Ph models are 4-wire + earth unless otherwise stated

·        Current rating 63A to 160A

·        Voltage rating all region-specific voltages selectable ±10%

·        Safe install environment 20kA for 1 cycle

·        Frequency 50Hz and 60Hz, ±10% - Auto detect

·        Transfer at zero current by break-before-make by Thyristors / SCR

·        Protection circuit breakers

·        RS232 or RS485 with third party adapter
