ConceptPower DPA 500 (Modular) - ABB
Three-phase modular UPS from 100kW – 3 MW
DPA 500

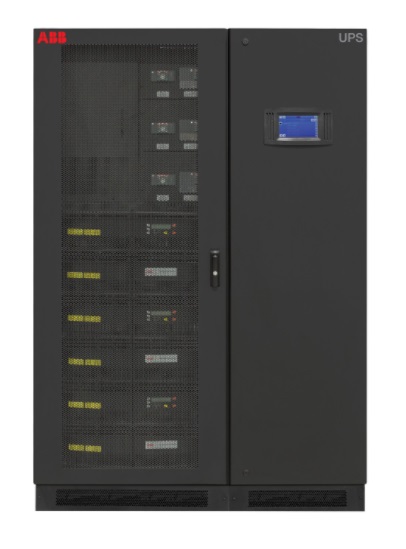

Conceived for medium-sized and large data centers, ABB’s DPA 500 modular uninterruptible power supply (UPS) fulfills power requirements from 100 kW to 3 MW and provides maximum availability for those who aim for zero downtime as well as a low cost of ownership.
Total vertical and horizontal scalability
The DPA 500 delivers power protection from 100 to 500 kW (one to five modules) in a single cabinet (vertical scalability). Cabinets can operate in a parallel configuration to build a system of up to 3 MW (horizontal scalabiltiy).
True parallel architecture
The advanced UPS design of DPA 500 provides the highest degree of protection in critical applications where the load must be fed with quality power. This UPS system utilizes decentralized parallel architecture and ensures the highest level or reliability and availability with true redundancy across the modules.
99.9999% (6 nines) availability
• Decentralized Parallel Architecture
• Replace or add modules with no downtime
• Short mean time to repair
• No single points of failure
Cost effective "right-sizing"
• Scalable up to 3 MW
• Vertical and horizontal scalability
Low total cost of ownership
• Up to 96% true online efficiency
• Eco-mode efficiency ≥ 99%
• Small footprint / high power density
• Unity power factor (kW = kVA)
• Low input harmonic distortion (THDi < 3.5%)
Efficient service concept
• Simple power upgrade
• Fast maintenance
• Reduced spare parts needed
• Full front access
|
General data |
400V IEC |
480V UL |
|
System power range |
100 kW – 3000 kW |
|
|
UPS module rated power |
100 kW |
|
|
UPS cabinet rated power |
500 kW |
300 kW / 500 kW |
|
UPS output rated PF |
1.0 |
|
|
Parallel configuration |
500 kW Cabinet: |
300 kW Cabinet: |
|
Wiring |
3ph + N + PE |
3ph + PE |
|
UPS type |
Modular, Decentralized Parallel Architecture (DPA) |
|
|
Topology |
Online double conversion |
|
|
Serviceability |
Front access only |
|
|
Input |
400V IEC |
480V UL |
|
Nominal input voltage |
220/380, 230/400, |
3 x 480VAC |
|
Voltage range |
< 100% (-10%,+15%) |
|
|
Frequency range |
35-70 Hz |
60 Hz |
|
Current THD at 100% load |
< 3.5 % |
|
|
Power Factor at 100% load |
0.99 |
|
|
Output |
400V IEC |
480V UL |
|
Rated output voltage |
220/380, 230/400, 240/415 VAC |
3 x 480VAC |
|
Voltage THD (with linear load) |
< 2 % |
|
|
Frequency |
50 or 60 Hz (selectable) |
60 Hz |
|
Efficiency |
400V IEC |
480V UL |
|
Online double conversion |
Up to 96% |
>96% |
|
Eco-mode |
≥99% |
|
|
Communications |
|
|
|
User interface |
Graphical touch screen (one per frame as standard) Decentralized LCD + mimic diagram (one per module as standard) |
|
|
Communication ports (optional) |
USB, RS-232, potential-free contacts, SNMP |
|
|
Customer interface (400 V IEC only) |
Remote shutdown, gen-set interface, external bypass contact |
|
Compliancy |
400V IEC |
480V UL |
|
Safety |
IEC/EN 62040-1 |
UL 1778 5th edition, CSA C22.2 No. 107.3-14 3rd Ed. |
|
EMC |
IEC/EN 62040-2 |
IEC/EN 62040-2 C3 |
|
Performance |
IEC/EN 62040-3 |
IEC/EN 62040-3 |
|
Manufacturing |
ISO 9001:2008, ISO 14001:2004 |
ISO 9001:2008 |
Technical specifications are subject to change without notice.
