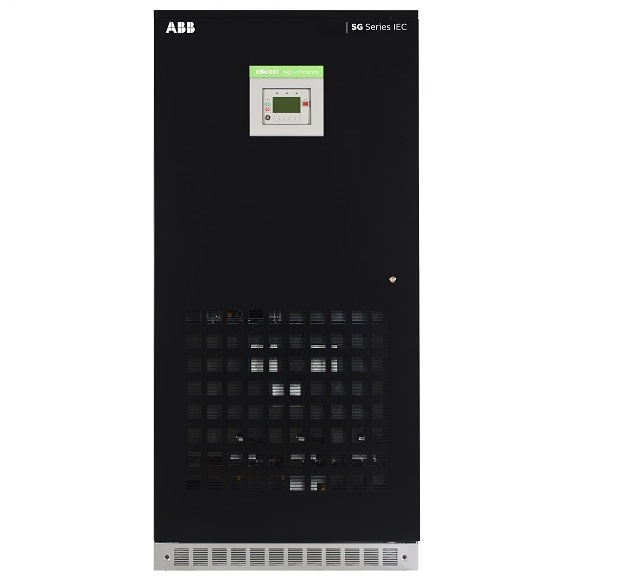

SG Series IEC 10 - 500kVA - ABB

Lượt xem : 1582
Đánh giá sản phẩm :

Three-phase UPS from 10 – 500 kVA

Sửa bởiLiên hệ
Liên hệ
Giá chưa thuế: Liên hệ
Liên hệ


Liên hệ

Họ tên(*)
Trường bắt buộc

Công ty(*)
Trường bắt buộc

Địa chỉ
Invalid Input

Điện thoại
Invalid Input

Email(*)
Trường bắt buộc

Nội dung(*)
Trường bắt buộc

Gửi ngay


Đánh giá: Chưa có đánh giá

Nhận xét

Sản phẩm này chưa có đánh giá.

The SG Series is one of the best performing, most reliable and most versatile three-phase UPS systems available to those who need critical power protection. Power peace-of-mind for a wide range of applications is guaranteed - at a low total cost of ownership (TCO).

This true online double conversion UPS exploits its network integration software and communication connectivity to provide comprehensive, easy-to integrate power protection for almost any IT environment. The SG Series operates in VFI (voltage frequency independent) mode, which maximizes load protection at any time. Instead of standard filters, the UPS runs an innovative control algorithm on the IGBT rectifier to ensure the delivery of clean power in a most efficient manner.

The SG Series UPS provides top-class reliability and performance while complying with all relevant EMC and safety standards. ABB’s unique RPA™ technology (redundant parallel architecture) allows units to work in parallel, thus further increasing reliability and uptime.

Key features:

• eBoost technology for high efficiency - up to 99 percent

• Up to 94.6 percent efficiency

• PurePulse IGBT rectifier: clean input <2%

• Output power factor: 1.0 (10-40 kVA), 0.9 (60-600 kVA)

• True front access design

• Small footprint

• Inverter zig-zag isolation transformer

• Extremely low output voltage distortion

• Superior battery management

• Intelligent energy management integrated (IEMi)

• Backfeed protection

• Built-in maintenance bypass

• Parallelable up to six units



General data

System power range (KVA)

10-40;

60-80;

100-120;

160;

200-300;

400-500;

Active power / frame (kW)

10/15/20/30/40;

 54/72;

 90/108;

 144;

 180/225/270;

 360/450

UPS output rated PF

  0.9

Max no of parallel frames

  Up to 6 frames

Max system power

  Up to 30 modules

Max system power

  3000 kW

Wiring

  3ph + N + PE

UPS type

  Three-phase standalone

Topology

  Online double conversion

Input

Nominal input voltage

3 x 380/400/415 V + N

Voltage range

340-460 V

Frequency range

45-66 Hz

Current THD at 100% load

< 3%

Power Factor at 100% load

≥ 0.99

Output

Rated output voltage (load dependent)

3 x 380/400/415 V + N

Voltage THD (with linear load)

<2% linear load, <3% nonlinear load (EN 62040)

Rated frequency

50/60 Hz

Efficiency

Double conversion

Up to92.3%

Up to 91.9%

Up to 92.1%

Up to 94.2%

Up to 94.6%

Up to 94.2%

Eco-mode

Up to 98%

Up to 97.9%

Up to 97.9%

Up to 98.4%

Up to 98.5%

Up to 98.7

Communications

User interface

Multilingual graphic display (LCD)

Communication ports

RS232, SNMP (Modbus IP, RS232, RS485 & BacNet IP)

Software

Monitoring and shutdown software available as option



Technical specifications are subject to change without notice.
