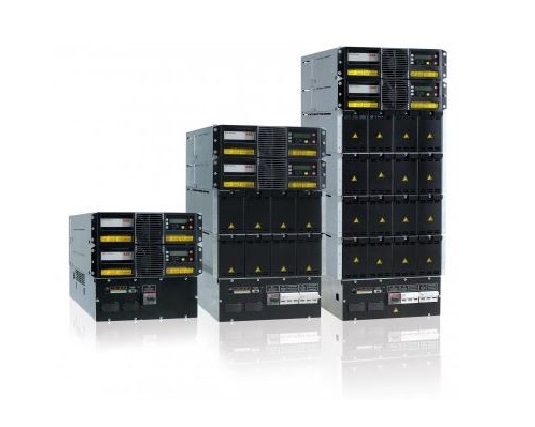

DPA UPScale RI (Modular) 10-80kW - ABB
Three-phase modular, rack-independent UPS system from 10 – 80 kW
The rack-independent DPA UPScale RI (rack-independent) is one of the most customizable UPS systems on the market and provides the best technical and commercial solutions to meet individual power protection needs. The three-phase and modular UPS system can be integrated into any 19" cabinet, regardless of the rack’s manufacturer.
Key features:
• 19" rack compatible
• Unity output power factor (kW = kVA)
• Best in class compactness (40 kW = 0.33 m2, 122 kW/m2)
• Input power factor PF = 0.99
• Up to 96% efficiency in double conversion mode and 98% efficiency in eco-mode
• Ripple-free battery charging increases battery life
• Wide input voltage range (–20%/+15%) at full load
• Up to 4 modules in parallel configuration
With DPA technology each UPS module has its own independent
• logic control
• control panel
• rectifier
• inverter
• battery charger
• static bypass
|
General data |
|
|
System power range |
10 kW – 80 kW |
|
UPS module rated power |
10 / 20 kW |
|
UPS frame rated power |
10 / 20 / 40 / 80 kW |
|
UPS output rated PF |
1.0 |
|
Max. no of parallel frames |
1 subrack |
|
Max no. of parallel modules across frames |
4 modules |
|
Wiring |
3ph + N + PE |
|
UPS type |
Modular (DPA) |
|
Topology |
True online double conversion |
|
Input |
|
|
Nominal input voltage |
220/380, 230/400, 240/415 VAC |
|
Voltage range |
150/204 - 264/460 VAC (load dependent) |
|
Frequency range |
35-70 Hz |
|
Current THD at 100% load |
< 3 % |
|
Power Factor at 100% load |
≥ 0.99 |
|
Output |
|
|
Rated output voltage |
220/380, 230/400, 240/415 VAC |
|
Voltage THD (with linear load) |
< 1.5 % |
|
Frequency |
50 or 60 Hz (selectable) |
|
Efficiency |
|
|
Online double conversion |
Up to 96% |
|
Eco-mode |
98% |
|
Communications |
|
|
User interface |
Module level LCD + mimic diagram |
|
Communication ports |
USB, RS-232, SNMP slot, potential-free contacts |
|
Software |
Monitoring and shutdown software available as option |
|
Compliancy |
|
|
Safety |
IEC/EN 62040-1 |
|
EMC |
IEC/EN 62040-2 |
|
Performance |
IEC/EN 62040-3 |
|
Manufacturing |
ISO 9001:2008, ISO 14001:2004 |
Technical specifications are subject to change without notice.
