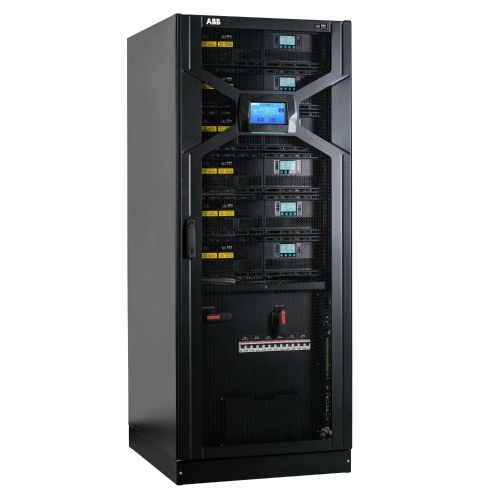

DPA 250 S4 (Modular) 50kW-1,5MW - ABB

Lượt xem : 1575
Đánh giá sản phẩm :

Three-phase modular UPS from 50kW – 1,5MW

Sửa bởiLiên hệ
Liên hệ
Giá chưa thuế: Liên hệ
Liên hệ


Liên hệ

Họ tên(*)
Trường bắt buộc

Công ty(*)
Trường bắt buộc

Địa chỉ
Invalid Input

Điện thoại
Invalid Input

Email(*)
Trường bắt buộc

Nội dung(*)
Trường bắt buộc

Gửi ngay


Đánh giá: Chưa có đánh giá

Nhận xét

Sản phẩm này chưa có đánh giá.

The DPA 250 S4 has a high-efficiency, modular architecture that offers best reliability for environmentally conscious organizations that also need zero downtime and low cost of ownership. The DPA 250 S4 is specially designed for critical, high-density computing environments such as small- to medium-sized data centers.

The DPA 250 S4 sets the standard for the next decade of UPS progress with advanced features such as its transformer-free IGBT converters that feature three-level topology with interleaving controls to enable market-leading efficiency of 97.6 percent for the UPS module. This high efficiency reduces operational costs and minimizes environmental impact.

The DPA 250 S4 online double conversion modular uninterruptible power supply represents the latest technological innovation. This modular UPS is based on decentralized parallel architecture (DPA™), where every UPS module is practically its own UPS, having all the essential functional units needed for independent operation. DPA increases system reliability and availability compared to other modular UPS solutions in the market, as there is inherent redundancy between the UPS modules on all functional levels.

High efficiency reduces total cost of ownership (TCO)

Selecting a UPS with high efficiency saves operational expenditures over the service lifetime and minimizes the impact it has on the environment.

Featuring superior 97.6 percent UPS module efficiency and 97.4 percent system efficiency, the DPA 250 S4 reduces energy losses that create pure costs as direct electricity spend and costs for cooling. Thanks to three-level interleaved technology, the DPA 250 S4 achieves an efficiency of over 97 percent in a wide operating range.

Under operating conditions where the load is low compared to UPS total capacity, efficiency typically suffers and relative power losses are increased. Under these conditions, by using ABB’s intelligent Xtra VFI – double conversion mode, the DPA 250 S4 can step up the system efficiency by optimizing the number of modules used in double conversion mode to feed the load. In case of a load step, more modules are switched automatically in milliseconds to online mode to secure the critical load.

Uninterruptable power – scalable from 50 kW up to 1.5 MW

Featuring the most reliable DPA architecture, each module is capable of working independently. Modules include all necessary functional parts, such as rectifier, inverter, battery converter, static bypass and back-feed protection. This allows the modules to be fully redundant with each other for maximal reliability. The DPA 250 S4 300 kW cabinet can host up to six 50 kW modules for 300 or 250 kW N+1 redundant power. Up to five 300 kW frames and up to 30 modules can be paralleled for an amazing 1,500 kW of uninterrupted power.Up to six 250 kW frames and up to 30 modules can be paralleled for an amazing 1,500 kW of uninterrupted power. Secure ring communication ensures there is no single point of failure in the system.

Online swappable module for continuous uptime

DPA architecture enables UPS modules to operate completely independently of each other. This means that in case one UPS module needs to be removed or added to the system, this can be managed fast and seamlessly.

Short service time

The UPS modules have virtually no wiring. The circuit boards and other internal components have been positioned in such way that consumable parts that may require replacement during service life are easily extractable – making servicing safer and faster. It takes only a few minutes to extract a module, replace consumable parts, insert it back to the system and turn it back online.


General data

UPS frame rated power

300 kW

UPS module rated power

50 kW

UPS output rated PF

1.0

Max no of parallel frames

Up to 5 frames

Max no of parallel modules across frames

Up to 30 modules

Max system power

1500 kW

Wiring

3ph + N + PE

UPS type

Modular (DPA)

Topology

Online double conversion

Input

Nominal input voltage

220/380, 230/400, 240/415 VAC

Voltage range

161/280 - 264/460 VAC

Frequency range

35 - 70 Hz

Current THD at 100% load

< 3%

Power Factor at 100% load

≥ 0.99

Output

Rated output voltage (load dependent)

220/380, 230/400, 240/415 VAC

Voltage THD (with linear load)

< 2%

Rated frequency

50 or 60 Hz (selectable)

Efficiency

Double conversion

Up to 97.6% module efficiency,
up to 97.4% system efficiency

Eco-mode

99%

Communications

User interface

Module level LCD + mimic diagram System graphical display

Communication ports

USB, RS-232, SNMP slot, potential-free contacts

Software

Monitoring and shutdown software available as option



Technical specifications are subject to change without notice.
