DPA UPScale ST (Modular) 10-200kW - ABB

Lượt xem : 1552
Đánh giá sản phẩm :

Three-phase modular UPS system from 10 – 200 kW

Sửa bởiLiên hệ
Liên hệ
Giá chưa thuế: Liên hệ
Liên hệ


Liên hệ

Họ tên(*)
Trường bắt buộc

Công ty(*)
Trường bắt buộc

Địa chỉ
Invalid Input

Điện thoại
Invalid Input

Email(*)
Trường bắt buộc

Nội dung(*)
Trường bắt buộc

Gửi ngay


Đánh giá: Chưa có đánh giá

Nhận xét

Sản phẩm này chưa có đánh giá.

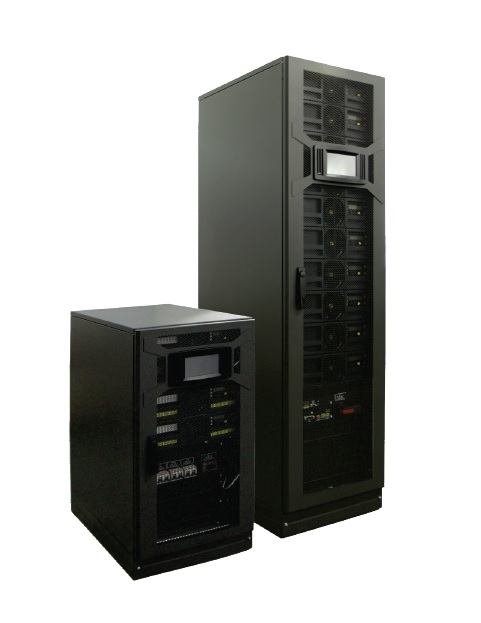

ABB’s DPA UPScale ST S2 is a modular UPS designed for low-medium power applications. The UPS offers all-in-one power protection solution that includes frame, UPS, battery and communications. The system delivers power protection from 10 kW to 200 kW in a single frame and growing mid-size infrastructures, it can be paralleled horizontally to increase the capacity up to 400kW.This fully scalable and easily maintained UPS gives you unparalleled uptime and energy efficiency.

Key features:

• Decentralized Parallel Architecture

• 99.9999% (6 nines) availability

• Redundant capacity (N+1) per frame

• Full vertical and horizontal scalability up to 400kW

• Best-in class efficiency performance 96%

• Small foot print with maximum power density 472kW/m2

• Fast maintenance and seviciability

With DPA technology each UPS module has its own independent

• logic control

• control panel

• rectifier

• inverter

• battery charger

• static bypass

General data

System power range

10 kW – 200 kW

UPS module rated power

10 / 20 kW

UPS frame rated power

80 / 60 / 120 / 200 kW

UPS output rated PF

1.0

Max.power per frame

200 kW / 10 modules

Max no. of parallel modules across frames

 20 modules / up to 4 frames

Wiring

3ph + N + PE

UPS type

Modular (DPA)

Topology

True online double conversion

Input

Nominal input voltage

220/380, 230/400, 240/415 VAC

Voltage range

150/204 - 264/460 VAC (load dependent)

Frequency range

35-70 Hz

Current THD at 100% load

< 3 %

Power Factor at 100% load

≥ 0.99

Output

Rated output voltage

220/380, 230/400, 240/415 VAC

Voltage THD (with linear load)

< 1.5 %

Frequency

50 or 60 Hz (selectable)

Efficiency

Online double conversion

Up to 96%

Eco-mode

98%

Communications

User interface module level

LCD control panel + mimic diagram

User interface system level

Graphical display (option)

Communication ports

USB, RS-232, SNMP slot, potential-free contacts

Software

Monitoring and shutdown software available as option

Compliancy

Safety

IEC/EN 62040-1

EMC

IEC/EN 62040-2

Performance

IEC/EN 62040-3

Manufacturing

ISO 9001:2008, ISO 14001:2004



Technical specifications are subject to change without notice.
