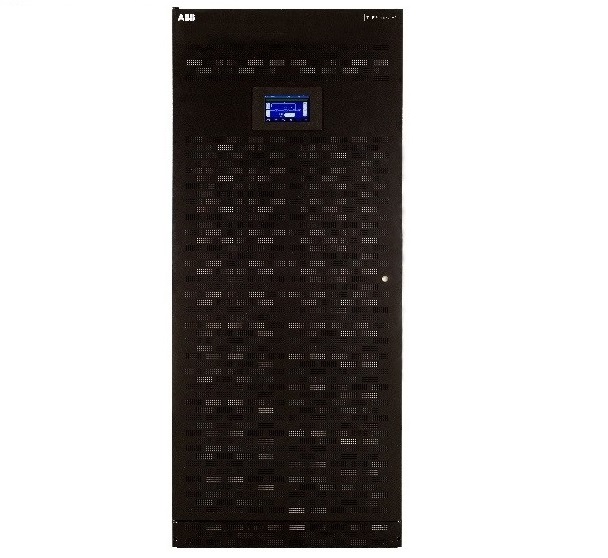

TLE Series IEC 200 – 400 kW - ABB

Lượt xem : 1521
Đánh giá sản phẩm :

Three-phase UPS from 200 – 400 kW

Sửa bởiLiên hệ
Liên hệ
Giá chưa thuế: Liên hệ
Liên hệ


Liên hệ

Họ tên(*)
Trường bắt buộc

Công ty(*)
Trường bắt buộc

Địa chỉ
Invalid Input

Điện thoại
Invalid Input

Email(*)
Trường bắt buộc

Nội dung(*)
Trường bắt buộc

Gửi ngay


Đánh giá: Chưa có đánh giá

Nhận xét

Sản phẩm này chưa có đánh giá.

TLE Series is one of the best-performing three-phase UPS systems for providing critical power protection in a wide range of applications. The UPS operates in VFI (voltage frequency independent) mode and uses an innovative control algorithm with three-level converter technology to achieve very high efficiency levels. This innovative product provides best-in-class efficiency in both double conversion mode and in eBoost™ operating mode.

The TLE Series UPS provides industry-leading reliability and efficiency, as well as clean power and unity power factor at the output. Reliability can be further increased by using ABB’s unique RPA™ (redundant parallel architecture) technology to operate multiple units in parallel. Throughout their entire life cycle, all ABB UPS systems are fully supported by teams that provide training, application expertise and 24/7 preventive and corrective service.

Key features:

• eBoost, lithium batteries and RPA with intelligent energy management™ (IEM) further improve efficiency

• Input from mains conditioned to a sinusoid with 0.99 input power factor and <3%

• Double conversion efficiency up to 96.6 percent

• Output power factor: 1

• True front access design

• Compact footprint

• Intuitive user interface

• Extremely low output voltage distortion

• Superior battery management





General data

System power range

200 kW

400 kW





Active power / frame



200 kW

400 kW



UPS output rated PF

  1.0

Max no of parallel frames

  Up to 6 frames

Max system power

  2400 kW

Wiring

  3ph + N + PE

UPS type

  Three-phase standalone

Topology

  Online double conversion



Input

Nominal input voltage

3 x 380/400/415 V + N

Voltage range

340-460 V

Frequency range

45-66 Hz

Current THD at 100% load

< 3%

Power Factor at 100% load

≥ 0.99



Output

Rated output voltage (load dependent)

3 x 380/400/415 V + N

Voltage THD (with linear load)

<2,5% linear load, <5% nonlinear load (EN 62040)

Rated frequency

50/60 Hz



Efficiency

Double conversion efficiency (VFI)

Up to 96.6%

Up to 96.6%



In eco-mode configuration (eBoost*)

Up to 98.3%

Up to 98.3%





Communications

User interface

Multilingual graphic display (LCD)

Communication ports

RS232, SNMP (Modbus IP, RS232, RS485 & BacNet IP)

Software

Monitoring and shutdown software available as option

Technical specifications are subject to change without notice.
