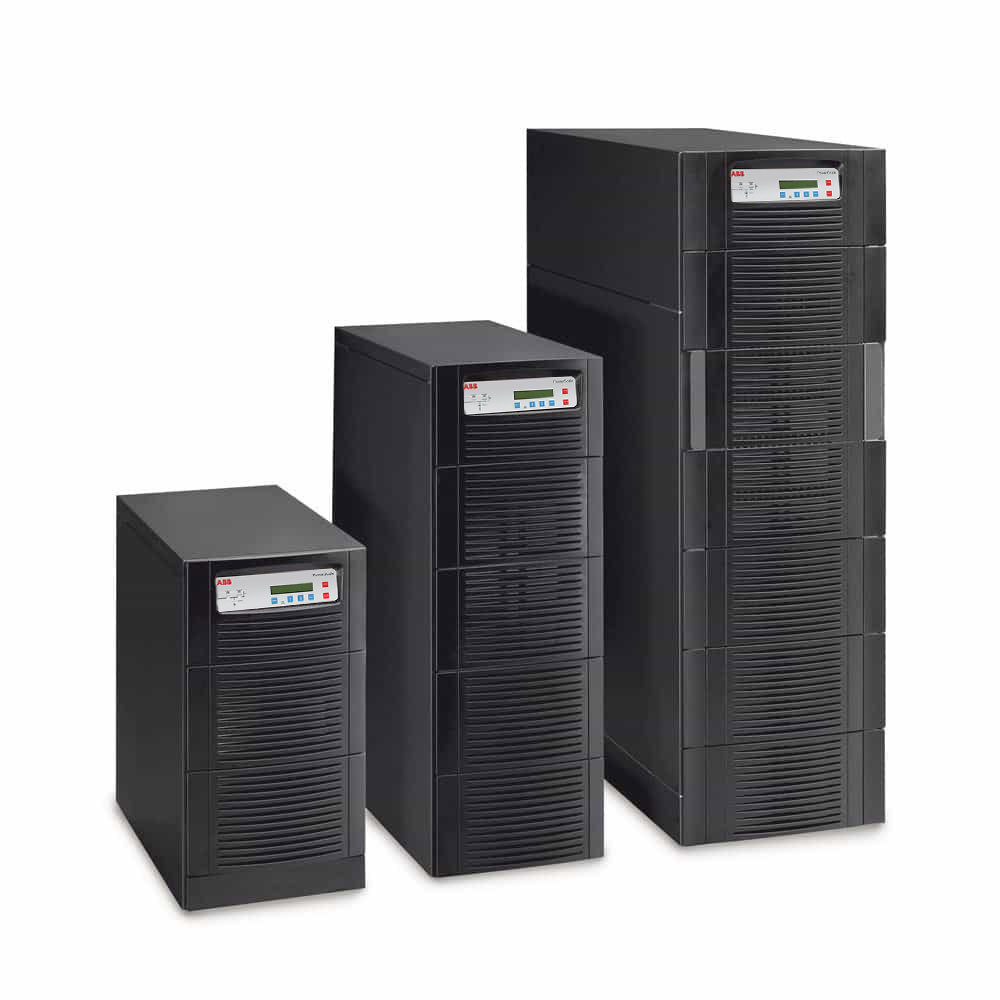

This new generation of transformer-less UPS responds to all major concerns of IT and facility managers. As saving costs and 100 percent uptime are their top priorities, PowerScale offers the lowest cost of ownership of any UPS system by providing energy efficiency, scalable flexibility, highest availability and easy serviceability.

Key features:

• Output power factor = 0.9

• Inbuilt autonomy up to 1 hour

• Best-in-class compactness

• Input power factor PF = 0.99

• Up to 95.5% efficiency in double conversion mode and 98% efficiency in eco-mode

• Ripple-free battery charging increases battery life

• Wide input voltage range (–20 %/+15 %) at full load

• Up to 20 units in parallel configuration



General data

System power range

10 kVA – 1000 kVA

UPS frame rated power

10/9-15/13.5-20/18-25/22.8-30/27-40/36-50/45 kVA/kW

UPS output rated PF

0.9

Max. no of parallel frames

Up to 20 units

Wiring

3ph + N + PE

UPS type

Standalone tower

Topology

True online double conversion



Input

Nominal input voltage

220/380, 230/400, 240/415 VAC

Voltage range

150/204 - 264/460 VAC (load dependent)

Frequency range

35-70 Hz

Current THD at 100% load

≤3%

Power Factor at 100% load

≥0.99



Output

Rated output voltage

220/380, 230/400, 240/415 VAC

Voltage THD (with linear load)

<2%

Frequency

50 or 60 Hz (selectable)



Efficiency

Online double conversion

Up to 95.5%

Eco-mode

98%



Communications

User interface

LCD + mimic diagram

Communication ports

USB (optional), RS-232, SNMP slot, potential-free contacts (optional)

Software

Monitoring and shutdown software available as option



Compliancy

Safety

IEC/EN 62040-1

EMC

IEC/EN 62040-2

Performance

IEC/EN 62040-3

Manufacturing

ISO 9001:2008, ISO 14001:2004

 Technical specifications are subject to change without notice.
